The Rat Tug under the knife

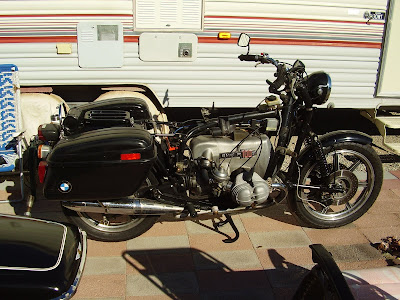

I finally decided to address the oil leaks which have sprung up on the R100S engine. I've had a cylinder base leak for quite some time and recently the engine started losing oil from behind the transmission. Probably the rear main seal.(?) Started the "dissection" at around 10:00 AM and spent an hour or so just removing body pieces. The side car comes off pretty quickly due to the "pinned" connections. Fuel tank , seat, windscreen, saddle bags, exhaust system came off next.

I've removed parts from this bike enough times to have it down to a pretty quick scenario.

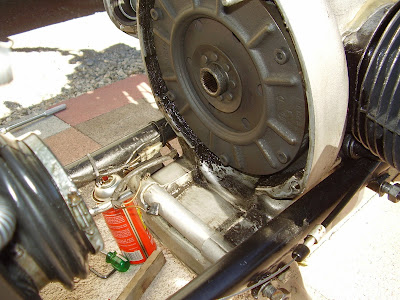

The transmission came off to reveal quite a clean area showing where the oil has been flowing out. On our last road trip the clutch slipped while pulling a long grade. A sure sign of oil on the clutch plate.




I ordered a set of bolts which facilitate the removal of the clutch assembly. The diaphragm spring must be released in stages to avoid warping things and also getting a face full of parts when it comes "springing" off.




I also wanted to address a cylinder base leak so pulled the top end off after removing the transmission. I found a "squished" head bolt o-ring which I botched when I assembled the engine a couple years ago. I will install a pair of metal base gaskets upon re assembly which will slightly reduce the compression ratio and assure cylinder base sealing.



My next surprise was finding a recessed exhaust valve on the right cylinder. This answers the problem I had with valve adjustment issues which were required too regularly.

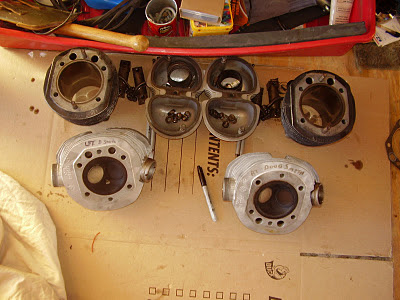

The cylinders still look good but there is quite a bit of carbon build up on the pistons and cylinder heads.



I made a call to Mesa AZ. to an Airhead friendly repair shop. The heads will be shipped over to them for reworking. hopefully the rebuild won't break the bank.




I also placed an order for all the seals / gaskets needed and a new clutch plate since mine is likely oil soaked.

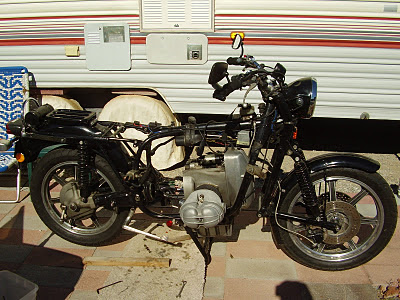

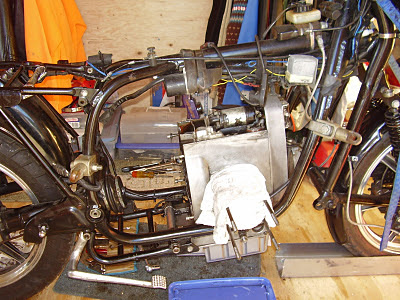

Todays progress took about 4 hours to completely tear the bike down. I'll likely remove the engine from the frame to allow easier acess to the clutch assembly. I'm fairly certain the engine will need a new timing chain but I'll address the oil leaks / clutch first.



The crankshaft must be blocked into place whill working on the clutch assembly. This requires blocking the crankshaft behind the timing/front engine cover to keep it from moving forward, which can allow a bearing to fall off it's locating pins which open a huge can of worms.



Any timing chain issues will be addressed after the rear engine seal issues are taken care of.
